华为路由器DHCP中继配置

  • A+
所属分类：HUAWEI 网络运维

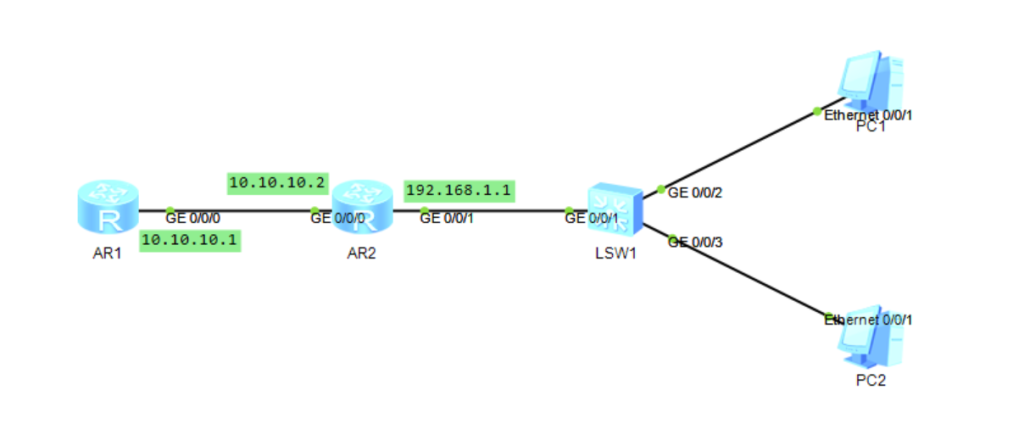

拓扑图

华为路由器DHCP中继配置

AR1

<Huawei>undo terminal monitor
<Huawei>system-view
[Huawei]dhcp enable
[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 10.10.10.1 24
[Huawei-GigabitEthernet0/0/0]dhcp select global
[Huawei-GigabitEthernet0/0/0]quit
[Huawei-ip-pool-xxx]network 192.168.1.0 mask 24
[Huawei-ip-pool-xxx]gateway-list 192.168.1.1
[Huawei-ip-pool-xxx]option121 ip-address 10.10.10.0 24 192.168.1.1
[Huawei-ip-pool-xxx]quit
[Huawei]ip route-static 0.0.0.0 0.0.0.0 10.10.10.2

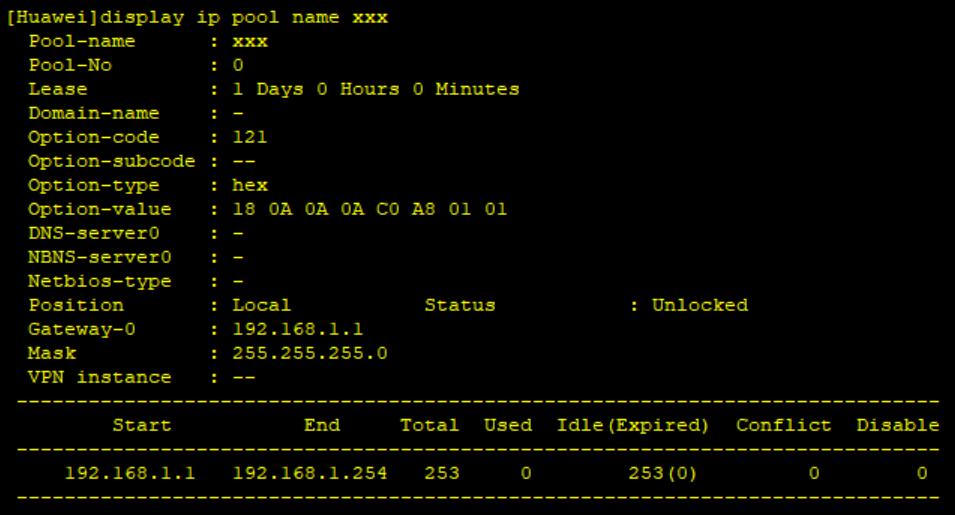

[Huawei]display ip pool name xxx
华为路由器DHCP中继配置

AR2

<Huawei>undo terminal monitor
<Huawei>system-view
[Huawei]dhcp enable
[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 10.10.10.2 24
[Huawei-GigabitEthernet0/0/0]quit
[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 192.168.1.1 24
[Huawei-GigabitEthernet0/0/1]dhcp select relay
[Huawei-GigabitEthernet0/0/1]dhcp relay server-ip 10.10.10.1
[Huawei-GigabitEthernet0/0/1]quit
[Huawei]ip route-static 0.0.0.0 0.0.0.0 10.10.10.1

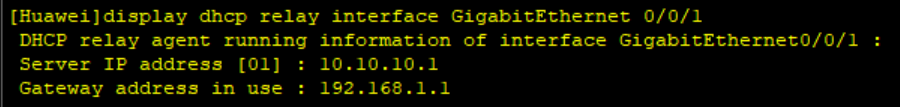

[Huawei]display dhcp relay interface GigabitEthernet 0/0/1

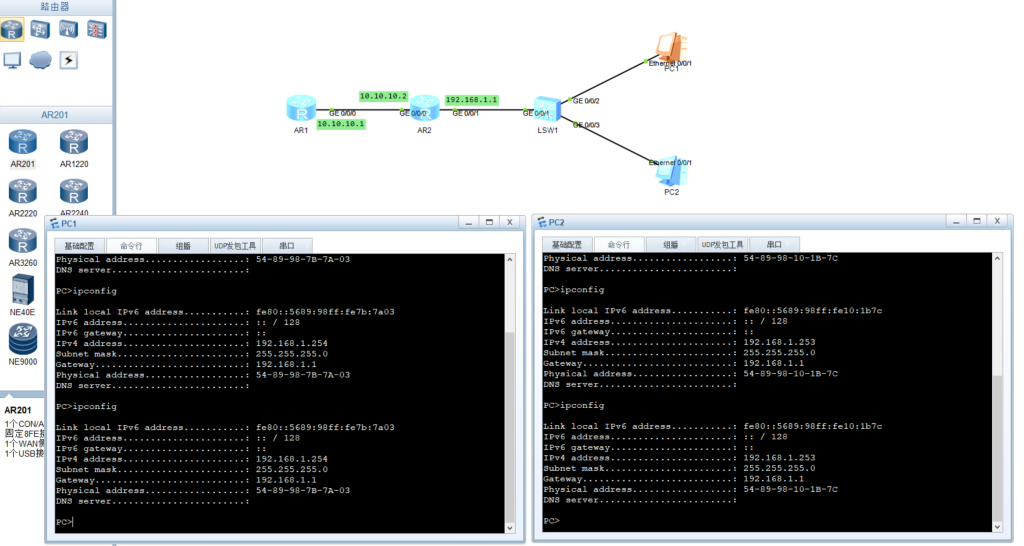

华为路由器DHCP中继配置
华为路由器DHCP中继配置
