华为路由器静态路由配置

  • A+
所属分类：HUAWEI 网络运维

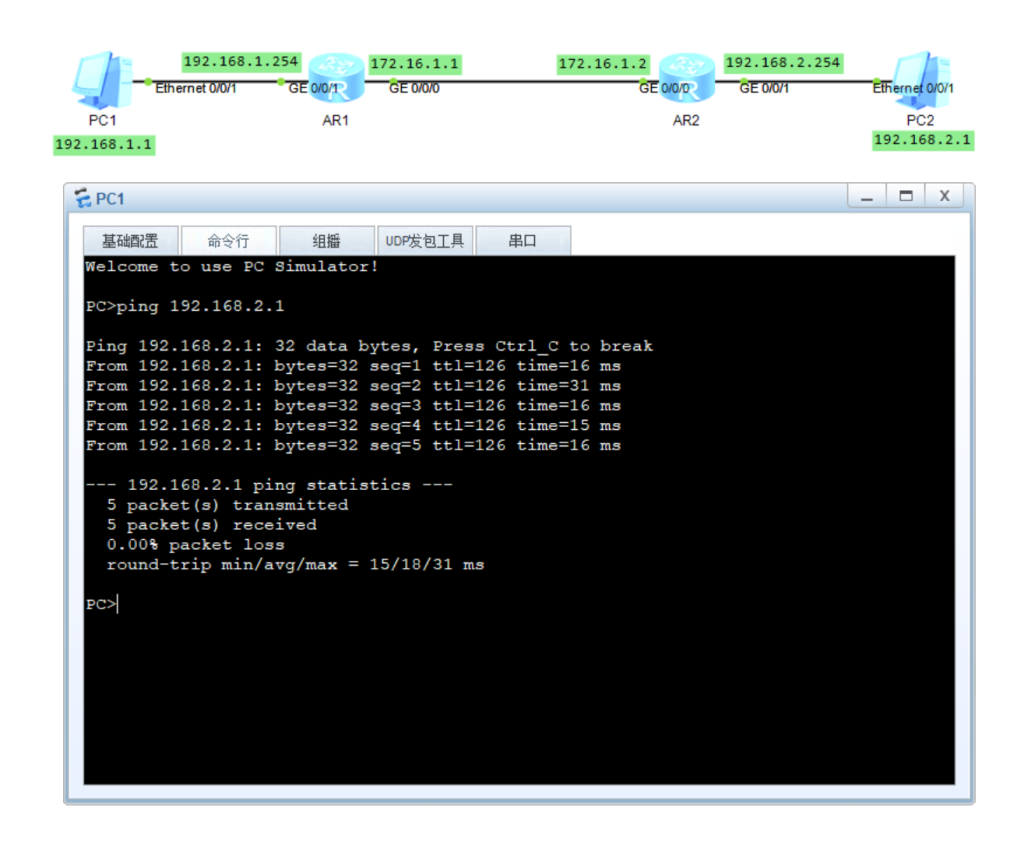

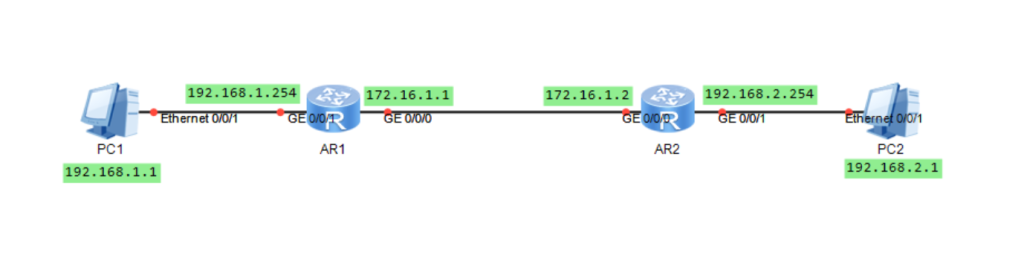

拓扑图

华为路由器静态路由配置

AR1配置

<Huawei>undo terminal monitor
<Huawei>system-view
[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 192.168.1.254 24
[Huawei-GigabitEthernet0/0/1]quit
[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 172.16.1.1 24
[Huawei-GigabitEthernet0/0/0]quit
[Huawei]ip route-static 192.168.2.0 24 172.16.1.2

AR2配置

<Huawei>undo terminal monitor
<Huawei>system-view
[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 192.168.2.254 24
[Huawei-GigabitEthernet0/0/1]quit
[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 172.16.1.2 24
[Huawei-GigabitEthernet0/0/0]quit
[Huawei]ip route-static 192.168.1.0 24 172.16.1.1

静态路由

ip route-static    目标网络的网络地址    目标网络的子网掩码长度    下一跳地址

默认路由

ip route-static    0.0.0.0    0.0.0.0    下一跳地址
华为路由器静态路由配置
